Waspaloy Pan Head Screws
Waspaloy (2.4654) Pan Head Screws are known for their superb high strength at elevated temperatures. Waspaloy is a high performance nickel alloy combined with cobalt, chrome and molybdenum to create it’s unique combination of strength and high temperature stability.
Similar to that of Inconel 718 fasteners, Waspaloy Pan Head Screws exceed the strength and stability of Inconel 718 at elevated temperatures beyond 1400°F. In addition, the oxidation resistance of Waspaloy fasteners make it an ideal materials for high temperature applications like gas turbines engines, and a variety of other aerospace components.
An age hardened super alloy with exceptional high temperature strength
Extreme high temperature strength
Service temperatures up to 1600°F (870°C)
Very oxidation resistant
Waspaloy chemistry & specifications
Datasheet for Waspaloy
Resources: Waspaloy Torque Specs
Custom Availability
Diameter sizes: Standard #00 – 4” in diameter / Metric M1.2 – M100
Threads: UNC, UNF, UNJ, UNR, Rolled,Cut
Minimum Volume – Typically 10pcs, depending on size and stock
Custom to print

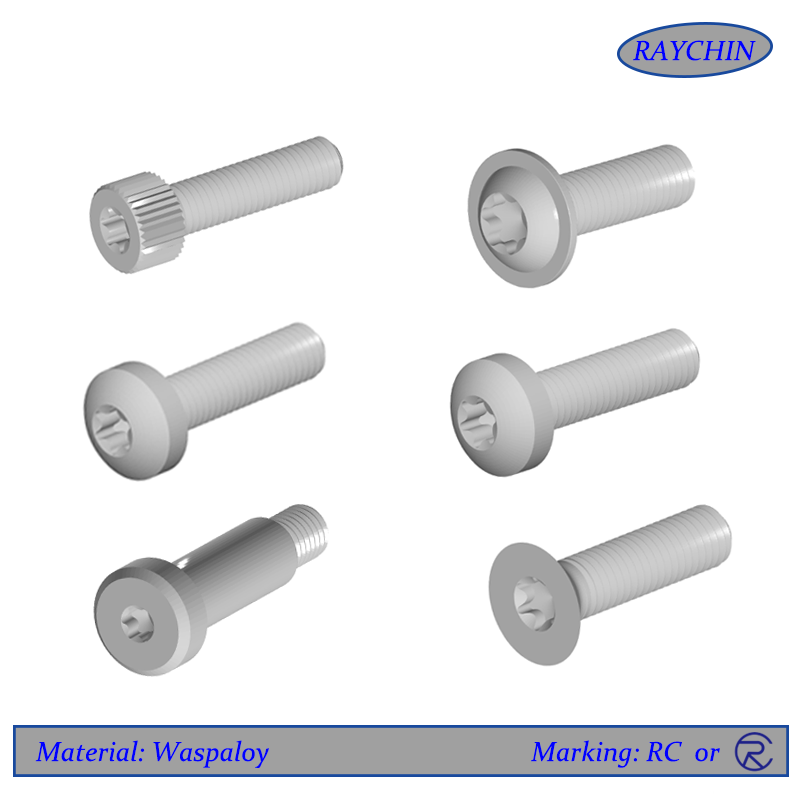

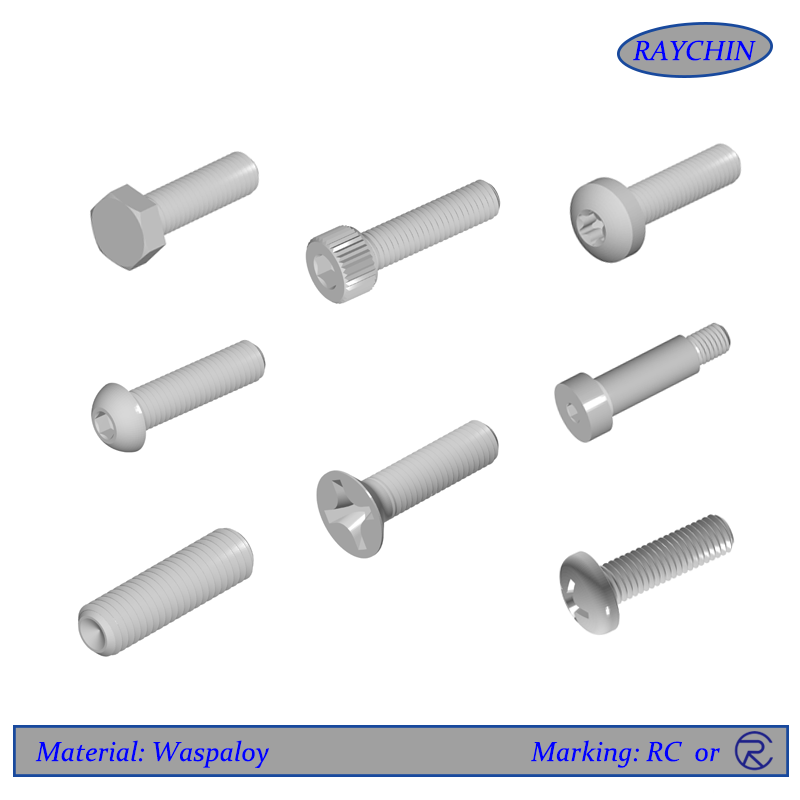

Waspaloy Screws Types: 12 Point Screws, Button Head Cap Screws, Flat Head Screws, Hex Head Cap Screws, Pan Head Screws, Set Screws, Socket Head Cap Screws, Tamper Resistant Security Screws, Torx Screws
Waspaloy Pan Head Screw Features and Benefits
Pan head screws are flat on top and rounded on the sides. Waspaloy pan head screws are ideal for:
Small diameter fasteners – especially when the fastener size needed is too small for a wrench.
When phillips or slotted drivers are desired. For many high strength specialty alloys, only slotted drives are available.
Low torque applications because the drivers don’t offer as much force as a wrench.
Large diameter head provides more clamping area.
How Are They Different from Button Head Screws?
Waspaloy pan head and button head screws have very similar profiles however, button head screws allow for a hex socket driver whereas pan head screws do not.
Waspaloy Fasteners
| Waspaloy Screws | 12 Point Screws Button Head Cap Screws Flat Head Screws Hex Head Cap Screws Pan Head Screws Security Screws Set Screws Socket Head Cap Screws Vented Screws
| • DIN 603 / ISO 8677 • DIN 912 / ISO 4762 • DIN 913 / ISO 4026 • DIN 914 / ISO 4027 • DIN 915 / ISO 4028 • DIN 916 / ISO 4029 • DIN 921 • DIN 931 / ISO 4014 • DIN 933 / ISO 4017 • DIN 961 / ISO 8676 • DIN 965 / ISO 7046 • DIN 966 / ISO 7047 • DIN 7991 / ISO 10642 • DIN 7380 / ISO 7380 • DIN 84 / ISO 1207 • DIN 85 / ISO 1580 • DIN 34822 • DIN 34821 • DIN 7504 / ISO 15480 • DIN 7984 • DIN 963 / ISO 2009 |
| Waspaloy Bolts | Hex Head Bolts Shoulder Bolts Wedge Anchor Bolts
| • DIN 931
• DIN 933
• ISO 4014
• ISO 4017
• ISO 7370 |
| Waspaloy Nuts | | • DIN 439 / ISO 4035
• DIN 934 / ISO 4032
• DIN 985 / ISO 7040
• DIN 986
• DIN 980 / ISO 7042 / ISO 19513
• DIN 6923 / ISO 4161 |
| Waspaloy Studs/Rod | Studs Threaded Rods Weld Studs
| • DIN 975
• DIN 976 |
| Waspaloy Washers | | • DIN 125 / ISO 7089 / ISO 7090
• DIN 126 / ISO 7091
• DIN 127 / ISO 7090
• DIN 9021 / ISO 7093
|
Waspaloy Screws

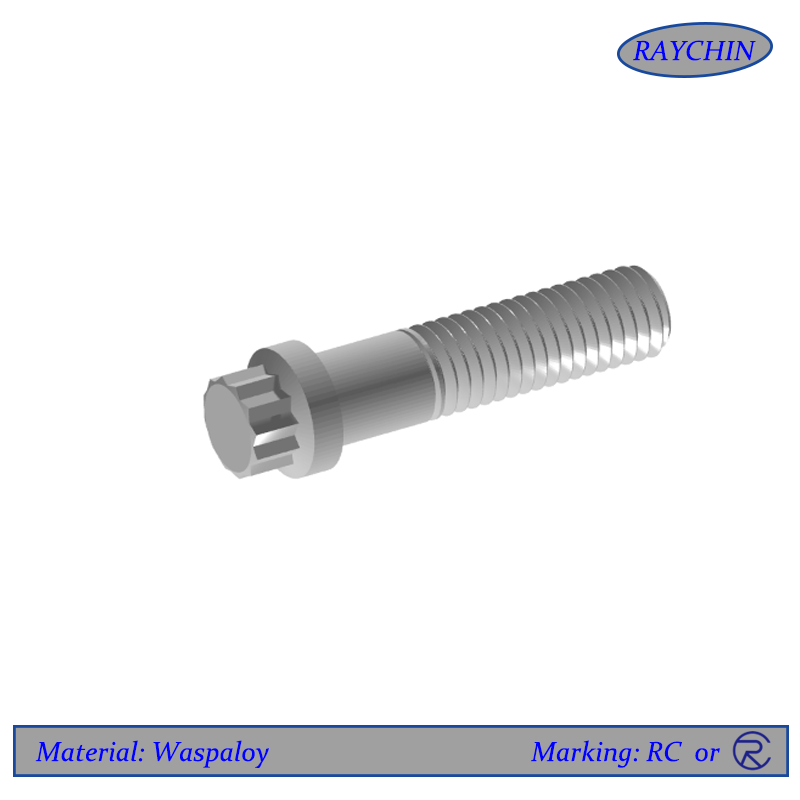

12 Point Screws | Waspaloy 12 point screws allow for higher torque to be applied than a socket head cap screw or head head bolt, however they are be less economical due to the complex head design. Available in 1/4" or larger sizes. | • IFI-115
• MIL SPEC
• DIN 34822
• DIN 34821 |

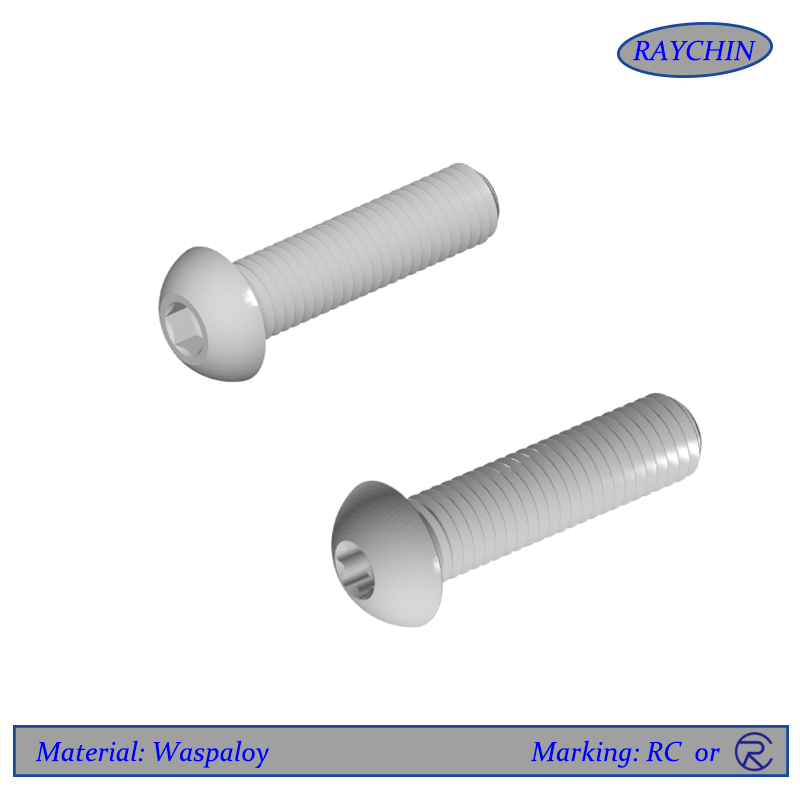

Button Head Cap Screws | Waspaloy button head screws offer a wide clamping area and low profile. They are best for fastening material that is too thin to counter bore. | • ASME B18.3
• ASME 18.3.4M
• DIN 7380 / ISO 7380 |
Flat Head Screws | Waspaloy flat head screws are most commonly offered in an 82° countersink angle, but can be customized to other angles from 60° -120° and are designed to be flush with the surface. Available in slotted and socket drivers. Phillips, 6-lobe, torx and tamperproof drivers in Waspaloy flat head screws can be made require special manufacturing. | • ASME B18.3
• ASME B18.3.6
• DIN 963 / ISO 2009
• DIN 965 / ISO 7046
• DIN 7991 / ISO 10642 |
Hex Head Cap Screws | Waspaloy hex head cap screws offer the added washer face to the bolt head which is lacking on a hex bolt and tighter dimensional tolerances. Ideal for a high clamping force applications with ease of access. Generally availabe in #2 - 1/2" sizes and metric sizes. | • ASME B18.6.3
• DIN 931 / ISO 4014
• DIN 933 / ISO 4017
• DIN 961 / ISO 8676 |

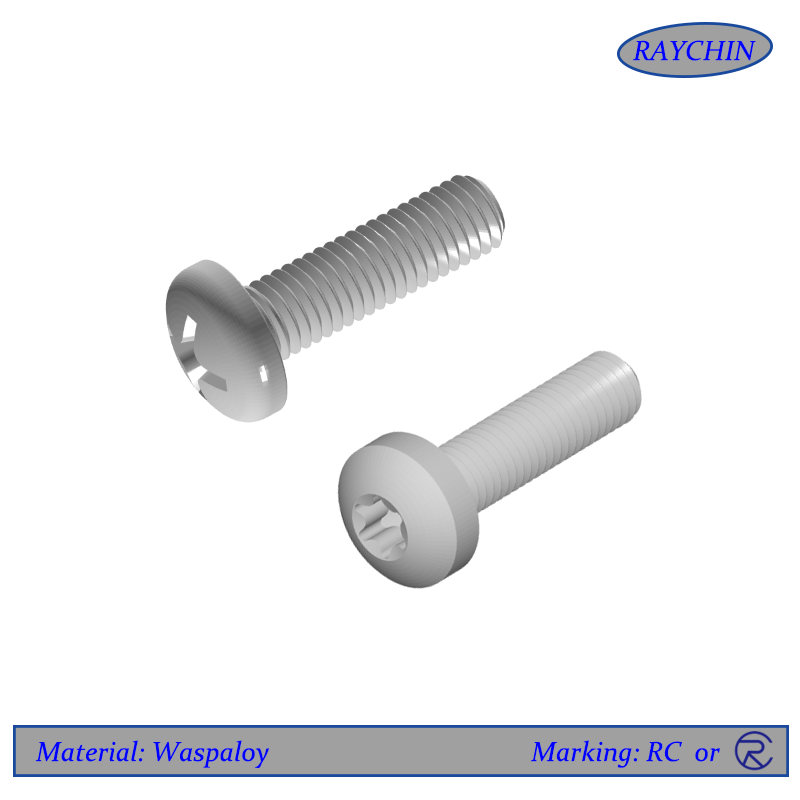

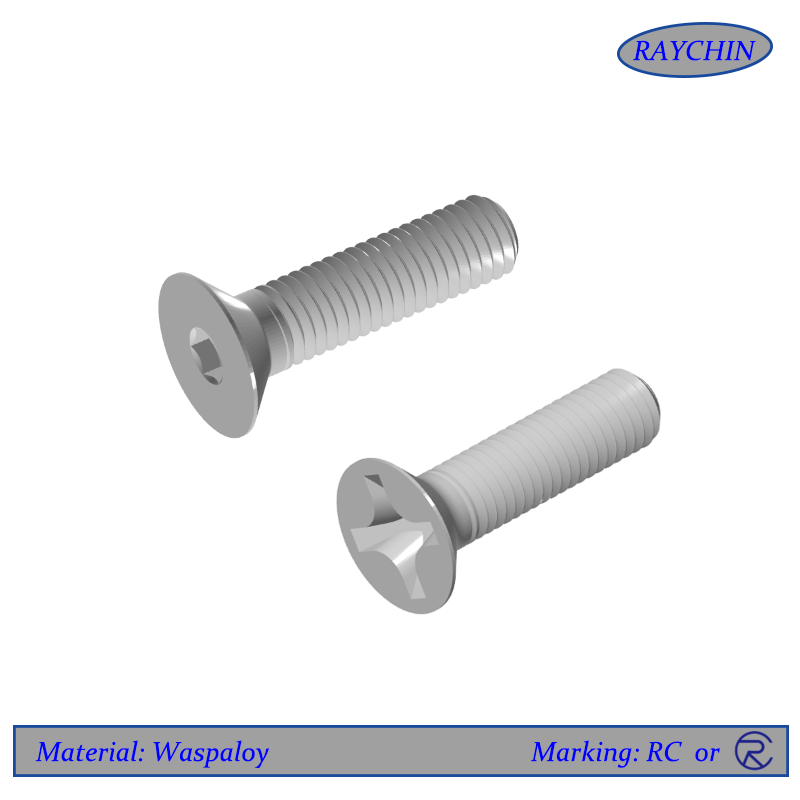

Pan Head Screws | Waspaloy pan head screws offer a rounded top are best used for small diameter faster needs. Offered in slotted and they are ideal for low torque applications. | • ASME B18.6.3
• DIN 7985
• DIN 921
• DIN 85 / ISO 1580
• DIN 84 / ISO 1207
(cheese head)
• DIN 966 / ISO 7047
(raised counter sunk) |

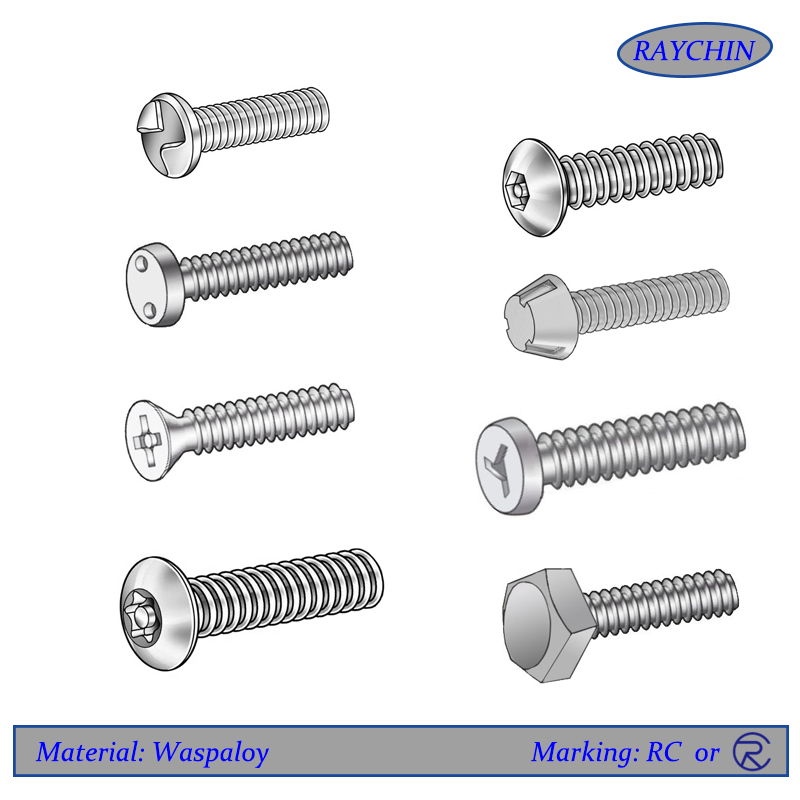

Security Screws | Unique driver designs offer these Waspaloy screws resistance to unwanted tampering or removal due to the fact that they cannot be removed using an ordinary driver. Waspaloy security screws are available in several different drive styles, as well as custom per print. |
|

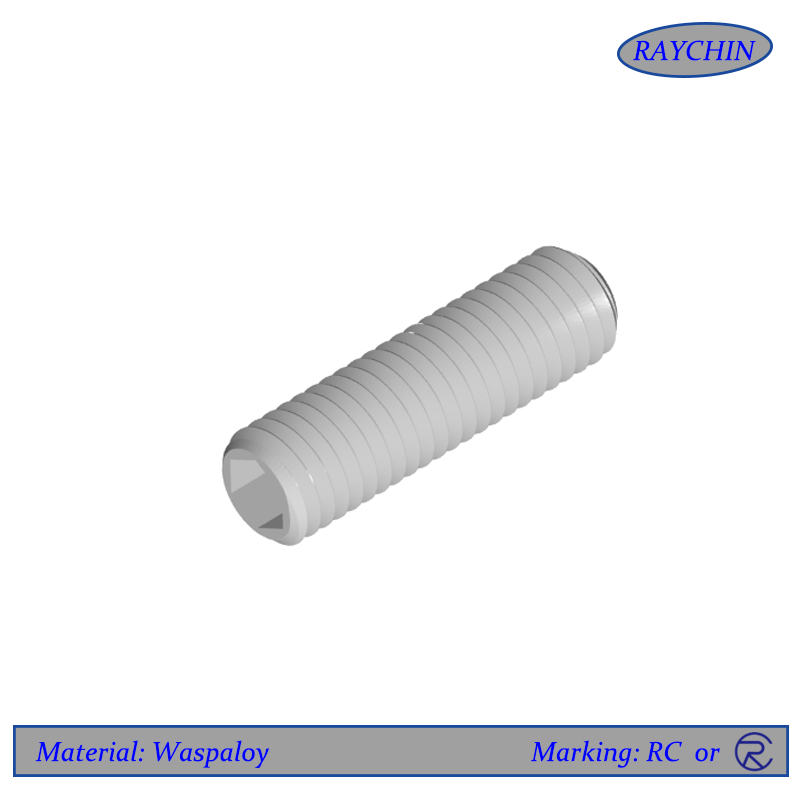

Set Screws | Waspaloy set screws are available in cup, cone, flat, dog and half-dog points. Set screws have no head and are equiped with a socket or slotted driver at one end. | • ASME B18.3
• DIN 913 / ISO 4026
• DIN 914 / ISO 4027
• DIN 915 / ISO 4028
• DIN 916 / ISO 4029 |

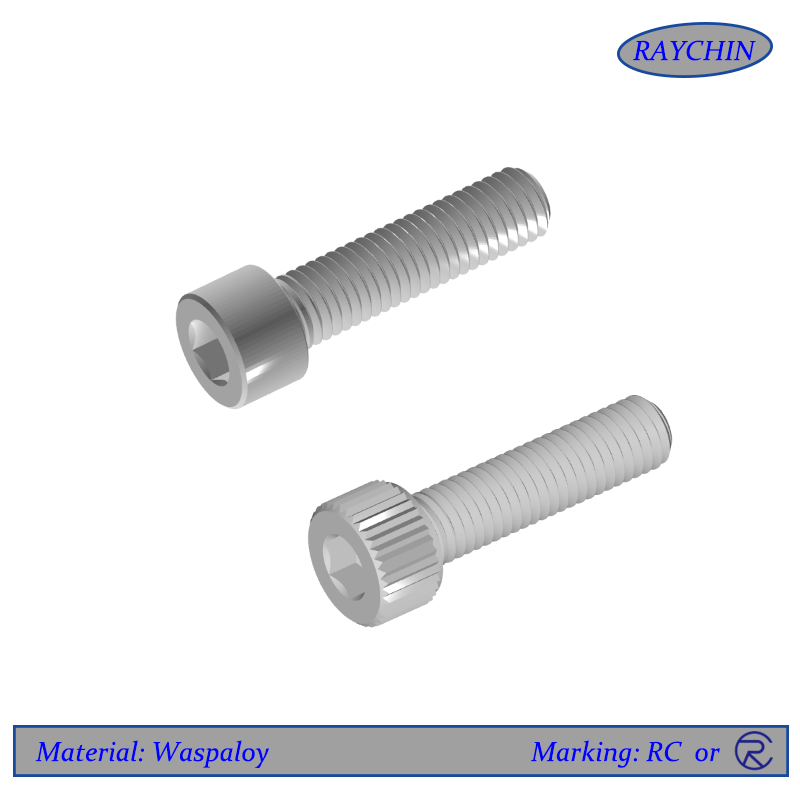

Socket Head Cap Screws | Waspaloy socket head cap screws are ideal for limited access situations where there is little clearance around the screws. They offer a safe, reliable and economic solution. | • ASMET B18.3
• DIN 912 / ISO 4762
• DIN 7984 |

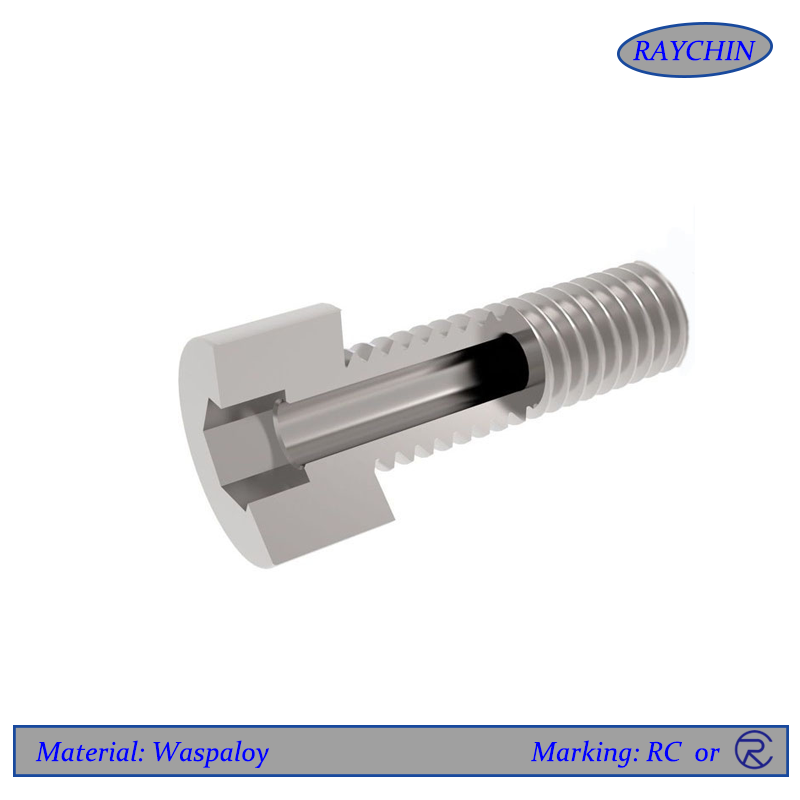

Vented Screws | Waspaloy vented screws are best for vacuum environments because the hole drilled through its axis (from head through threads) allow gases and other contaminents to vent. Waspaloy vented screws are available in any style. |
|
Waspaloy Bolts

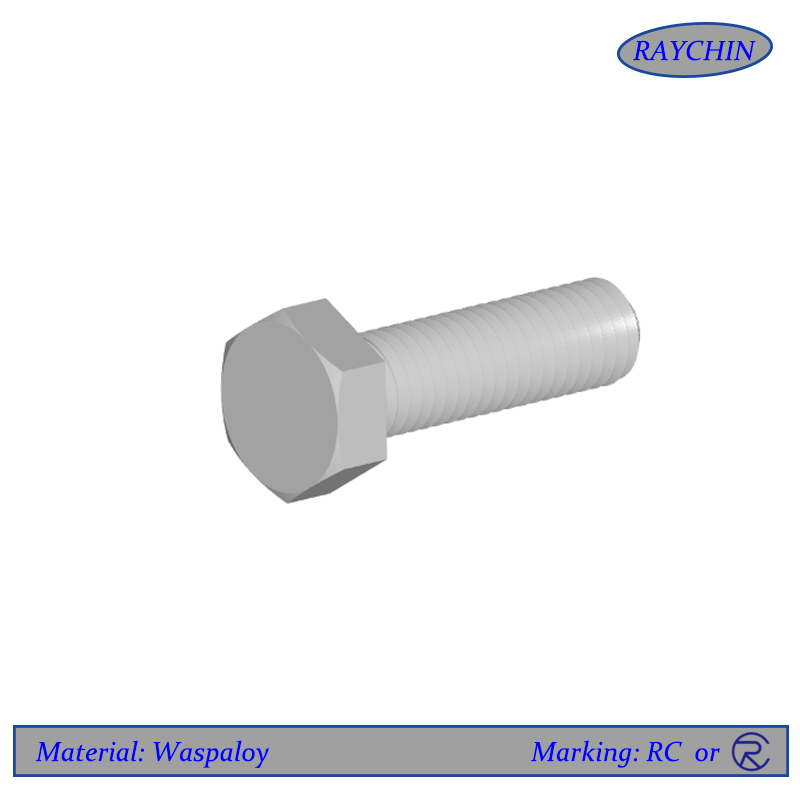

Hex Head Bolts | Waspaloy hex bolts are similar to hex head cap screws but without the added washer face. They are ideal for high clamping force applications with ease access. | • ASME B18.2.1
• DIN 931 / ISO 4014
• DIN 933 / ISO 4017 |

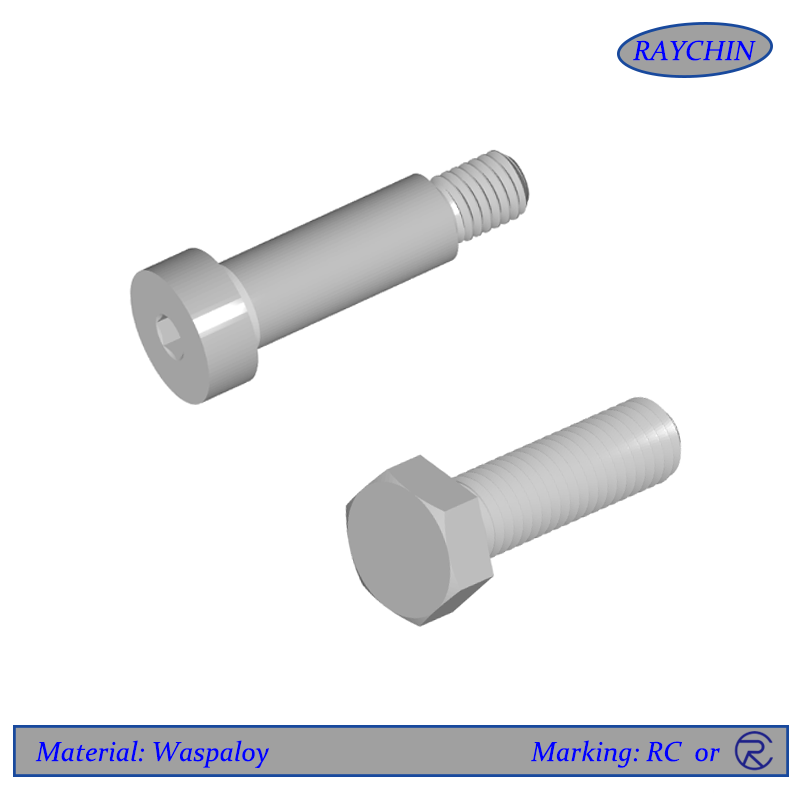

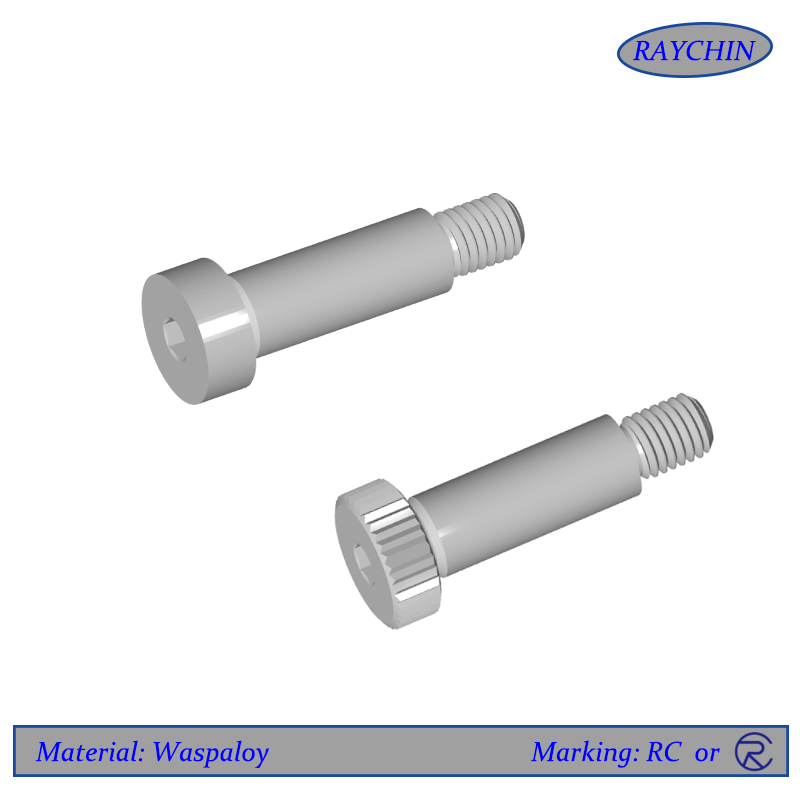

Shoulder Bolts | Waspaloy shoulder bolts are made up of a head, shoulder and threaded segment. The smooth shoulder section allows for rotating parts. Typically available with socket drivers. | • ASME
• DIN 7379 / ISO 7379
• ISO 7370 |
Wedge Anchor Bolts | Waspaloy wedge anchor bolts offer a safe secure fastening solution for attaching equipment and other materials to concrete in corrosive environments. |
|
Waspaloy Nuts

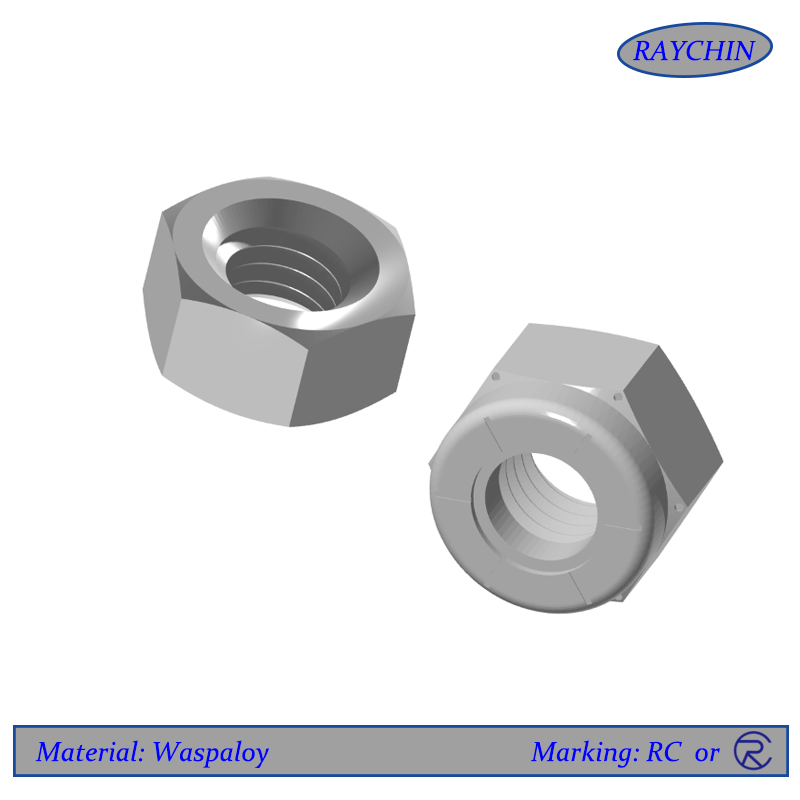

Hex Nuts | Waspaloy hex nuts are available in a variety of styles including finished hex nuts, jam nuts and heavy hex nuts. | • ASME B18.16.3
• ASME B18.2.2
• DIN 439 / ISO 4035
• DIN 934 / ISO 4032
• DIN 986 |

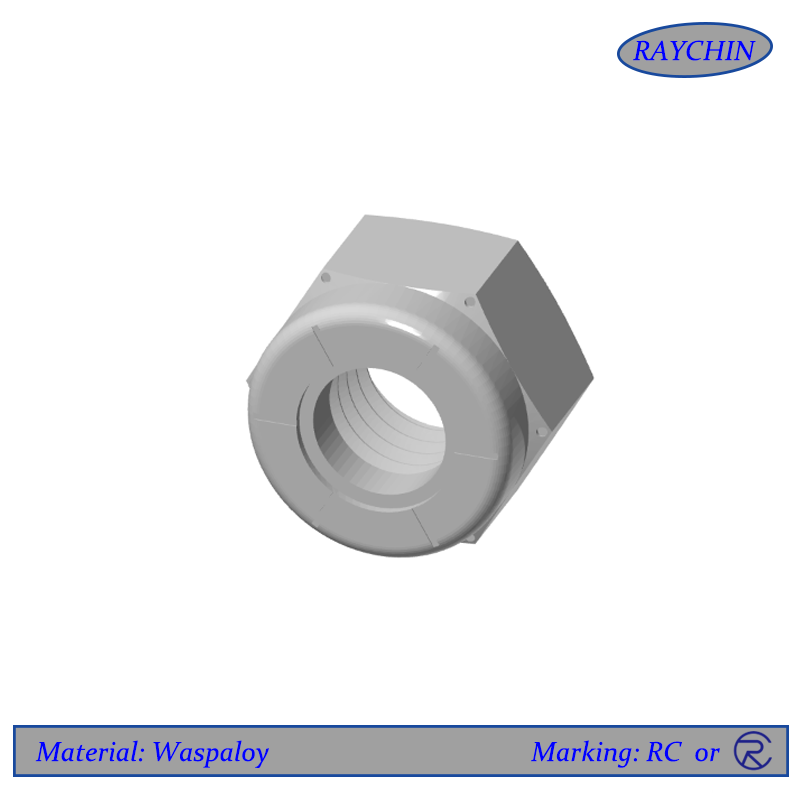

Lock Nuts | Waspaloy lock nuts are available in all metal and polymer insert styles. All-metal lock provide even load distribution and can be used at high temperatures. Polymer insert styles are more economical and are best for temperatures under than 350°F. | • ASME B18.16.3M
• DIN 980 / ISO 7042 /
ISO 19513
• DIN 6923 / ISO 4161
• DIN 985 / ISO 10511 /
ISO 7040 |
Waspaloy Studs & Threaded Rods

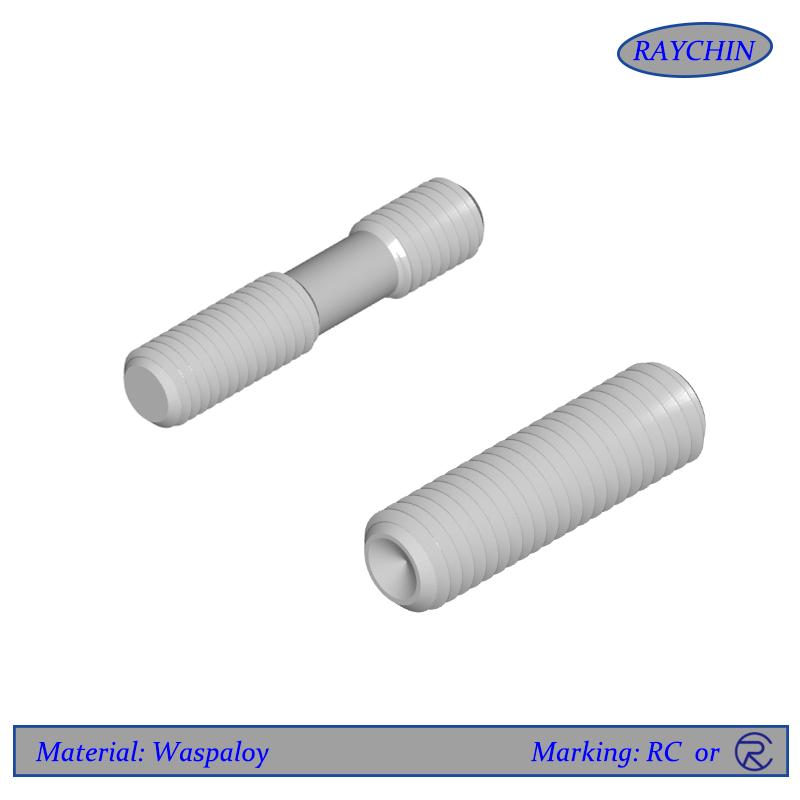

 Studs | Waspaloy studs are fully threaded or partially threaded and made to custom lengths. | • ASME B18.31.2
• DIN 976 |

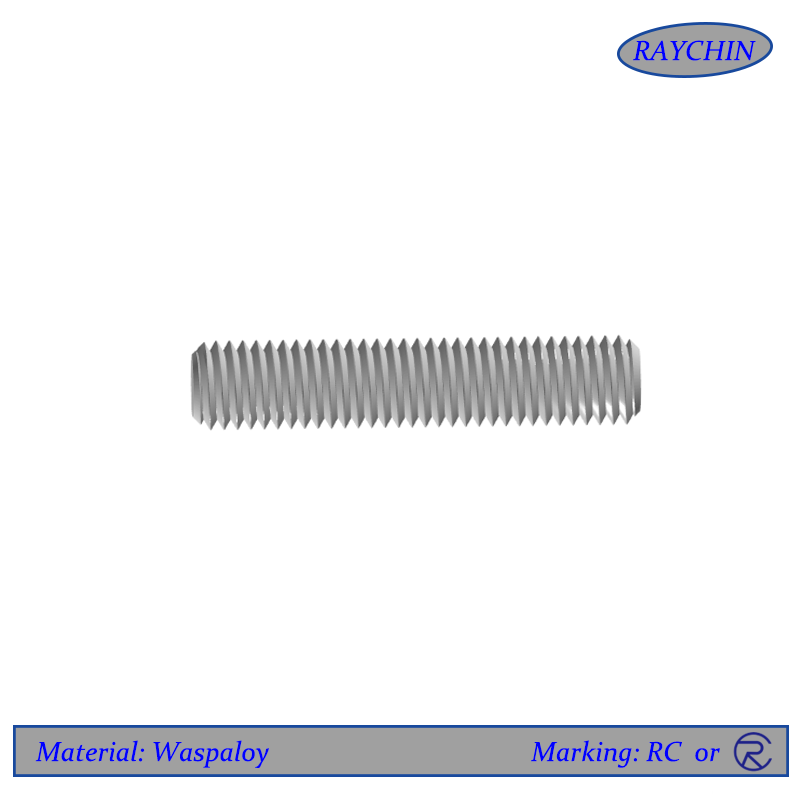

Threaded Rod | Waspaloy threaded rod or all thread are available in lengths greater than 1 foot. Minimum order quantity is a total of 6 feet of length. | • ASME B1.1
• DIN 975 |
Weld Studs | Waspaloy weld studs are available in both arc or capacitor discharge (CD) styles. Weld studs provide an extremely secure fastening solution when one side of the stud needs to be permanently fix to a part and the other side with the threads accessible. |
|
Waspaloy Washers

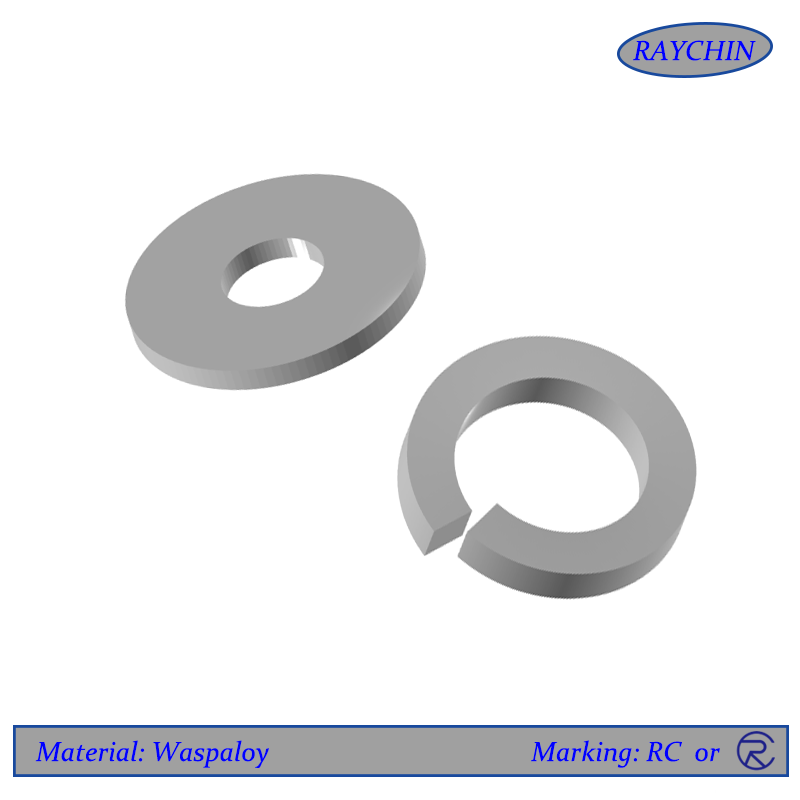

Flat Washers | Waspaloy washers are most commonly offered in SAE sizes, but also availabe in USS, oversized and custom sizes upon request. | • ASME 18.21.1
• SAE / USS
• DIN 125 / ISO 7089 /
ISO 7090
• DIN 126 / ISO 7091 |
Lock Washers | Waspaloy lock washers are offered as split lock washers. Belleville spring lock washers can also be made upon request. | • ASME B18.21.1
• DIN 127 / ISO 7090
• DIN 6796 / ISO 10690
|
Waspaloy (2.4654) Chemistry & Specifications
Waspaloy (2.4654) is a solution annealed and age hardended alloy which provides its high strength properties. There are a few aging varieties however the AMS 5708 is one of the more common.
Waspaloy Specifications: UNS N07001, ASTM B 637, AMS 5708, AMS 5709, EN 2.4654, Werkstoff 2.4654
| Waspaloy | Ni | Cr | Co | Mo | Ti | Fe | Al | Mn | Si | Cu | Zr | C | P | S | B |
| Min% | - | 18.0 | 12.0 | 3.50 | 2.75 | - | 1.20 | - | - | - | 0.02 | 0.02 | - | - | 0.0 |
| Max% | Bal | 21.0 | 15.0 | 5.00 | 3.25 | 2.0 | 1.60 | 1.00 | 0.75 | 0.50 | 0.12 | 0.10 | 0.030 | 0.030 | 0.010 |
