17-4 PH Screws

17-4 PH screws are made from a precipitation hardened stainless steel most known for its exceptional strength and its ability to maintain its mechanical properties to 600°F. Compared to 316 stainless steel, 17-4 PH screws yield strength is up over 4 times greater. When compared to Duplex 2205 screws, the yield strength of 17-4 PH can be up to 2-½ times greater.

17-4 screws are available in 8 different aged (precipitation hardened) conditions offering a variety of mechanical properties (see below). In addition, Raychin also provide screws per ASTM F593 Grade 630 to ensure the proper tensile and yield strengths for sensitive applications.

• Well suited for high strength applciaitons

• Up to 4x stronger than 316 stainless steel

• Maintains its mechanical strength up to 600°F

• 17-4PH Chemistry & Specifications

• ASTM F593 Grade 630 screws

• 17-4PH Datasheet

Resources: 17-4PH Torque Specs

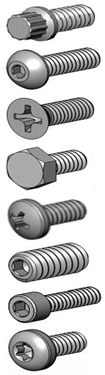

17-4 PH Screw Types: 12 Point Screws, Button Head Cap Screws, Flat Head Screws, Hex Cap Screws, Pan Head Screws, Set Screws, Socket Head Cap Screws, Tamper Resistant Security Screws, Torx Screws, Vented Screws

17-4PH Chemistry & Specifications

17-4PH Specifications: UNS S17400, AISI 630, ASTM A564-630, Werkstoff 1.4542, AMS 5604 Sheet, Strip and Plate, ASTM A 693 Plate

ASTM F593, Grade 630

This specification covers seven groups of stainless steel alloys, with ASTM F593, Grade 630 applying 17-4PH. ASTM F593 Grade 630 covers the requirements for 17-4PH stainless steel bolts, hex cap screws, and studs sized 0.25 to 1.50 inches, inclusive, in nominal diameter. It is intended for common use and for service applications requiring general corrosion resistance.

Common 17-4 Fastener Conditions:  Aged Conditions vs Tensile Strength
