17-4 PH Washers
17-4 PH washers are made from a precipitation hardened stainless steel most known for its exceptional strength and its ability to maintain its mechanical properties to 600°F. Compared to 316 stainless steel, 17-4 PH washers yield strength is up over 4 times greater. When compared to Duplex 2205 washers, the yield strength of 17-4 PH can be up to 2-½ times greater.
17-4 washers are available in 8 different aged (precipitation hardened) conditions offering a variety of mechanical properties (see below).
An extremely strong precipitation hardened stainless steel
· Well suited for high strength applciaitons
· Up to 4x stronger than 316 stainless steel
· Maintains its mechanical strength up to 600°F
· 17-4PH Chemistry & Specifications
· 17-4PH Datasheet
Resources: 17-4PH Torque Specs

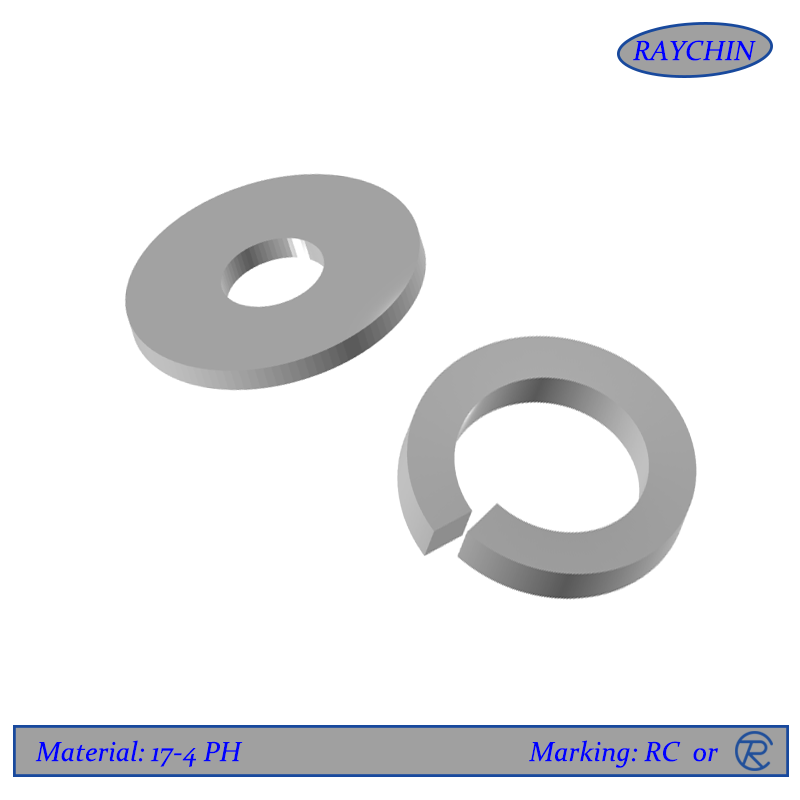

17-4 PH Wasshers Types: Flat Washers & Lock Washers
17-4PH Chemistry & Specifications
17-4PH Specifications: UNS S17400, AISI 630, ASTM A564-630, Werkstoff 1.4542, AMS 5604 Sheet, Strip and Plate, ASTM A 693 Plate
| 17-4PH | Fe | Cr | Ni | Cu | Mn | Si | Mo | Nb+Ta | C | P | S |
| Min% |
| 15.0 | 3.0 | 3.0 | - | - | - | - | - | - | - |
| Max% | Bal | 17.5 | 5.0 | 5.0 | 1.0 | 1.0 | 0.50 | 0.45 | 0.07 | 0.04 | 0.03 |
ASTM F593, Grade 630
This specification covers seven groups of stainless steel alloys, with ASTM F593, Grade 630 applying 17-4PH. ASTM F593 Grade 630 covers the requirements for 17-4PH stainless steel bolts, hex cap screws, and studs sized 0.25 to 1.50 inches, inclusive, in nominal diameter. It is intended for common use and for service applications requiring general corrosion resistance.
| Full-Size Tests | Machined Specimen Tests |
| Stainless Steel Alloy Group | Condition | Alloy Mechanical Property Marking | Nominal Diameter (inches) | Tensile Strength (ksi) | Yield Strength (ksi) | Rockwell Hardness | Tensile Strength (ksi) | Yield Strength | Elongation % |
| 7(630) | AH | F593U | 1/4 to 1.5 IN | 135 to 170 | 105 | C28 to38 | 135 | 105 | 16 |
Common 17-4 Fastener Conditions: Aged Conditions vs Tensile Strength
| Aged Condition | Ultimate Tensile (ksi) | Yield Strength at0.2% Offset (ksi) | Elongation% | Hardness Rc |
| H900 | 200 | 185 | 14 | 40-47 |
| H925 | 190 | 175 | 14 | 38-45 |
| H1025 | 170 | 165 | 15 | 35-42 |
| H1075 | 165 | 150 | 16 | 33-39 |
| H1100 | 150 | 135 | 17 | 32-38 |
| H115C | 145 | 125 | 19 | 28-37 |
| H1150-M | 125 | 85 | 22 | 26-36 |
| Annealed | 160 | 145 | 5 | ~35 |
